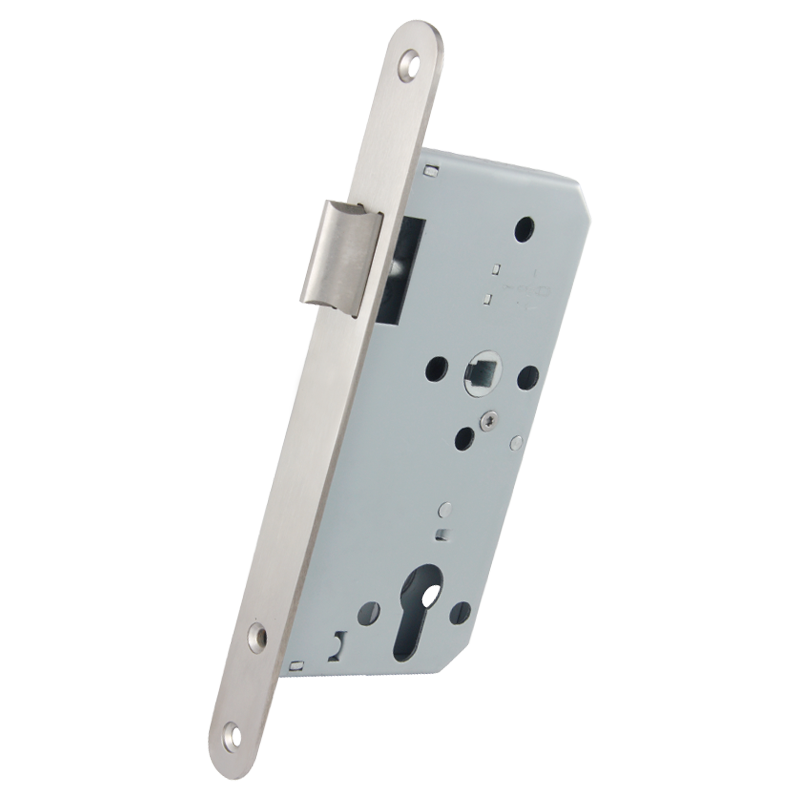

3301

conforms to DlN 18.250 class 3for Euro profile cylinder with 15mm radius caminox latch and deadbolt,fire-resistantlatch in convex shape for a soft closing of door, driven by bothlever handle and cylinderdeadbolt driven by cylinder, double-throwsprung follower for better attraction of the handle

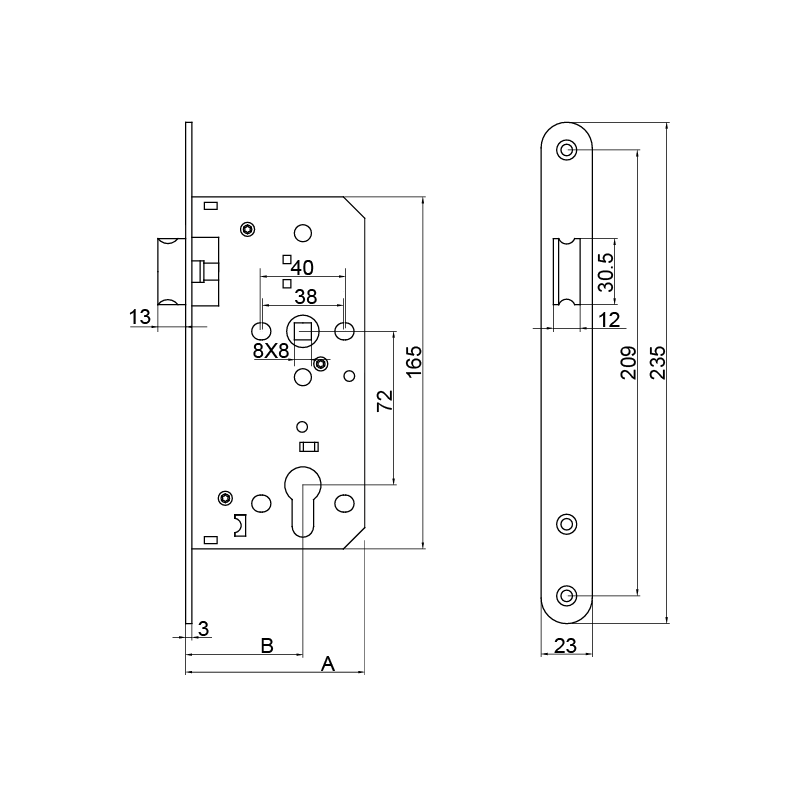

Model number： 3301
Backset： 40mm,45mm,50mm,55mm,60mm,65mm
Hole Centre： 72mm
Follwer： 8x8mm,9x9mm
Forend&Striker： Inox
Colour： Stainless Steel Satin,PVD
Latch： Inox
Roller： N/A
Deadbolt： N/A
Hook： N/A

CONTACT NOW

Product Details

■ conforms to DlN 18.250, 18.251 class 3

■ for Euro profile cylinder with 15mm radius cam

■ inox latch, fire-resistant

■ usually used in conjunction with one fixed handle on the outside of door which just can push/pull the door, latch driven by cylinder only. on the inside of door, latch driven by both lever handle and cylinder

■ sprung follower for better attraction of the handle
